Membrane Switch

What is Membrane Switch

A membrane switch is a type of control panel printed on a thin piece of polyester or polycarbonate. The switch uses metallic or electrically conductive ink. Examples of where these switches are used include home appliances, medical devices, industrial, security and display devices . They are simply a way of creating a user interface with an electronic device, like a touch screen or computer keyboard. They are used in designs that have size constraints, such as television remote controls. They are also used in devices that must be easily cleaned, such as portable, folding computer keyboards.

Benefits Of Membrane Switches

Durability

Because of its simple design and lack of moving components, membrane switches are known to be more durable than other types of controls.

Low profile

Thanks in part to the printed circuitry, membrane switches are very thin and require minimal space.

Design and ordering flexibility

Membrane switches can be custom designed to fit your application. You also have your choice of assembly options by ordering either a complete membrane switch or its individual layers.

Affordability

Compared to other interfaces such as touchscreens, membrane switches are cost-efficient without sacrificing the functionality.

Ability to withstand a variety of environmental factors

With an enclosed design and rugged outer materials, membrane switches can be resistant to moisture, water, chemicals, UV rays, heat, scratches, and more.

Clean surfaces

The smooth outer layer makes membrane switches easier to clean than mechanical switches with protruding buttons. They can also be designed with an anti-microbial film for medical or industrial controls.

Shielding

A shielding layer can be added to a membrane switch to block electromagnetic (EMI) or radio frequency interference.

Low circuitry and voltage requirements

Interacting layers are sealed together with adhesive to create a self-contained, low-voltage circuit in a compact package.

Lighting

Membranes switches can be enhanced with LED and backlighting.

Option of tactile or non-tactile

Depending on your application, you can add embossing and graphics to mimic the user experience of a button with a manual switch.

First 12 Last1/2

Why Choose Us

One-stop service

We promise to provide you with the fastest reply, the best price, the best quality, and the most complete after-sales service.

Our Service

We can provide professional technology support for customer based on their requirements. We are one to one service to follow up customer project. If any product quality issues appeared. We will provide solution within 24 hours.

Quality Control

We have built a professional QC team to accurately inspect every raw material and every process of production.

Customized solutions

We understand that every business has unique needs and requirements. Thus we offer customized solutions tailored to meet the needs of our clients.

Types of Membrane Switches

Tactile Membrane Switches

Tactile membrane switches provide a snap action that is visible most clearly to the person while operating this membrane switch. These switches utilize a poly dome or metal dome to offer a physical snap feedback response to the finger of the user by allowing him to recognize that the key has been depressed.

Non-Tactile Membrane Switches

Nontactile membrane switches are the most economical & reliable switches but they do not provide direct feedback to the consumer from this switch. So this drawback can be overcome by using a display or an LED indicator. The main benefit of these switches is that they permit simply create custom sizes & shapes of the active keypad region.

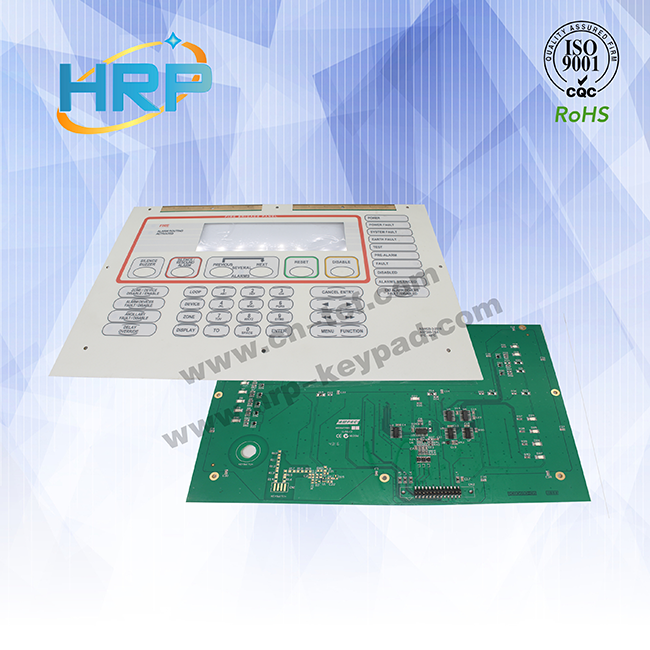

PCB Backed Membrane Switches

These switches are mainly used for the lower circuit which gives structural support by including a variety of surface mount components. This assembly can be connected by a manufacturer to your printed circuit board otherwise sub-contractors can be used to give this kind of construction.

FPC membrane switch

Application of Membrane Switches

Medical Devices

The medical industry relies on membrane switch keypad technology for a range of devices, including patient monitoring equipment, diagnostic tools and surgical equipment. Easy disinfection and the ability to integrate antimicrobial properties ensure a hygienic and efficient user interface.

Industrial Control Panels

The ruggedness and ability of membrane switches panel to withstand harsh environments make them a suitable choice for industrial control panels. They provide reliable control and operation of machinery and equipment in industries such as manufacturing, automation and energy.

Aerospace

Membrane switches are used in cockpit displays, avionics, and other control panels. These switches are designed to withstand extreme temperatures, vibrations, and electromagnetic interference, ensuring the reliability and safety of the aircraft.

Telecommunications Equipment

Such as routers, switches, and modems. These devices require user-friendly interfaces that are easy to navigate and operate. Membrane switches provide a tactile and responsive interface that allows users to quickly and efficiently control the device.

How Do Membrane Switches Work

Graphic overlay: The interface layer consisting of the buttons and display that the operator sees and interacts with.

Top circuit:The circuitry closest to the interface layer that, when pressed, hits the desired area on the bottom circuit layer.

Bottom circuit: The circuit running a continuous current through conductive inks (often silver, copper, or graphite.

Backer adhesive:Used to mount the membrane switch to the desired application. This final mounting adhesive also must fit the unique die-cut shape of the switche’s outside dimensions.

Spacer adhesive: The adhesive that separates the circuit layers from each other. This membrane switch spacer, just as with the graphic attachment adhesive, requires a unique die-cut exactly matching the interface design of the graphic overlay and outside dimensions of the switch.

Graphic attachment adhesive : The adhesive layer that attaches the graphic overlay to the top circuit layer. The adhesive must be uniquely die cut to match the graphic overlay design as well as the outside dimensions of the membrane switch.

How to maintain membrane switches

01/

Keep them clean

Dirt, grease, and other contaminants can disrupt the electrical connections and compromise the performance of the membrane switch. Clean the switch regularly with a soft cloth and mild soap solution.

02/

Avoid excessive force

Membrane switches are designed to be operated with minimal force. Applying excessive pressure may damage the switch or cause it to malfunction. Ensure that users are aware of the amount of force required to operate the switch.

03/

Inspect regularly

Regular inspection of the membrane switch can identify any issues, such as cracks or tears in the protective layers. Promptly addressing these issues can prevent them from causing further damage to the switch.

04/

Protect against moisture

Moisture can damage the internal components of the switch, causing it to malfunction. Protect the switch from exposure to liquids and humidity.

05/

Avoid harsh chemicals

Harsh chemicals like acids, solvents, and alkalies can damage the surface of the membrane switch. Avoid using such chemicals near the switches.

06/

Check for wear and tear

Membrane switches are designed to withstand wear and tear but they will eventually wear out. Check the switches regularly to make sure they are still working properly.

How Are Membrane Switches Constructed

Membrane switches are constructed using multiple layers of materials that work together to create a functional switch. The base layer can be a rigid printed circuit board (PCB) or a flexible substrate. On top of the base layer, a layer of printed circuitry is applied using conductive ink. The printed circuitry creates the electrical pathways necessary for the switch to function.

A layer of spacer material is added to create the air gap required for the switch to work. This spacer may be a layer of adhesive or a spacer material like polyethylene. The spacer forms the shape of the switch and provides a cushion for the top layer.

The top layer of the membrane switch is the graphic overlay. This can be made of several different materials, including polyester or polycarbonate. The graphic overlay is typically printed with colors, images, and text to indicate the function of each switch. The graphics also provide durability and protection for the underlying layers.

When a switch is pressed, the graphic overlay compresses the spacer layer, which compresses the circuitry below. This compression causes the circuitry to contact and complete the electrical circuit, sending the signal to the device to perform the desired function.

What Is The Difference Between a Membrane Switch And a Tactile Switch

The raw material of the Metric Roller Chain Sprocket should ensure that the gear teeth have sufficient strength and wear resistance.Carbon steel,alloy steel,etc.are commonly used materials.

Forged steel:This material(generally with a carbon content of 0.15-1.6%)has good toughness and impact resistance,and can be heat-treated or chemically treated to improve its performance.This method can improve the hardness of the tooth surface, making it more suitable for gear transmission of heavy-duty and precision machines. For example,if small sprocket teeth participate in meshing many times and are prone to wear,you can choose high tooth surface hardness

Membrane switches Can it have backlight or glow functionCast steel has excellent mechanical strength and hardness.It can be annealed,normalized,etc.,and is generally used to make larger gears.At the same time,its good corrosion resistance makes it suitable for use in different environments

cast iron:Gray cast iron is relatively brittle and not impact-resistant,but its chemical composition is stable,so it resists gluing,and pitting corrosion,and is not easily deformed.Chain sprockets made of this material are generally used in applications with low speed and low power

Membrane switches Can it have backlight or glow function

Membrane switches can be backlit or illuminated using various methods such as LED lighting, fiber optic backlighting, and EL (electroluminescent) technology.

LEDs are a popular choice for backlighting membrane switches due to their low power consumption and long-lasting durability. LEDs can be placed behind the membrane switch to illuminate the symbols and characters on the keypad. LED lighting can also be multicolored, allowing for customized backlighting options.

Fiber optic backlighting is another option for membrane switches. It uses a bundle of fiber optic cables to transmit light from a separate light source to the switch. This method provides even illumination and allows for more intricate designs.

EL technology is also commonly used for backlighting membrane switches. EL panels consist of layers of materials that emit light when an electrical current is applied. This method provides a uniform backlight and can be used for multicolored backlighting as well.

Backlit or illuminated membrane switches are often used in low-light settings such as industrial or medical equipment, gaming devices, and automotive applications. They improve visibility and make it easier to operate the switch even in dimly lit environments.

Our Factory

Our factory located in 4/F, Bldg#4, YingFeng Industrial Park, SanHe Economic Development Area, HuiZhou, China, The Architecture include material warehouse,mold warehouse. bacthing workshop, Plate making workshop, Screen printing workshop, (assembly, Guide hole, electronic testing) workshop, stamping and embossing workshop, Sales department, engineer department, QC department and laser department and so on.



FAQ

Q: What is a membrane switch?

A: A membrane switch is a type of electrical switch that is made from multiple layers of polyester or polyimide film with embedded electrical conductors, used to control electronic devices.

Q: What are membrane switches used for?

A: They can be found in various applications, ranging from medical equipment, consumer electronics, aerospace technology, military hardware, and household appliances.

Q: What material is a membrane switch made of?

A: The two most common materials used are polyester and polycarbonate. These materials are available in a variety of finishes. These begins as a clear material with the graphics usually printed on the reverse side (sub-surface printing) of the product.

Q: What are the advantages of using membrane switches?

A: Membrane switches provide excellent durability, flexibility, efficiency, and customization options. They are also cost-effective compared to mechanical switches.

Q: Can membrane switches be used in harsh environments?

A: Yes, membrane switches can be used in extreme environments, as they can be made with materials that are resistant to water, dust, heat, and chemicals.

Q: What printing methods are used to create membrane switches?

A: Printing methods for creating membrane switches include silkscreen printing, digital printing, and lithographic printing.

Q: How do I select the right membrane switch for my application?

A: To select the right membrane switch for your needs, you should consider factors such as the size and shape of the switch, the required functionality, and the environment in which it will be used.

Q: What are tactile membrane switches?

A: Tactile membrane switches have a tactile response when activated, providing users with a tactile "click" or feedback.

Q: What is a non-tactile membrane switch?

A: Non-tactile membrane switches do not have a tactile response when activated and have a smoother surface.

Q: Can membrane switches have backlit or illuminated features?

A: Yes, membrane switches can have custom backlighting or illumination options depending on the application.

Q: How does a membrane switch work?

A: Membrane switches are a type of human-machine interface characterized by being constructed from several layers of plastic films or other flexible materials. These films are printed or laminated with conductive inks. They function by temporarily closing or opening a circuit.

Q: What factors should be considered in designing a membrane switch?

A: When designing a membrane switch, factors such as the layout, labeling, and graphics, operating conditions, and end-user application should be considered.

Q: What is the difference between a membrane switch and a mechanical switch?

A: Membrane keyboards are less expensive and easier to manufacture, but they provide a less satisfying typing experience and are less durable. Mechanical keyboards are more expensive, but they provide a more tactile and responsive experience and are more durable.

Q: Are membrane switches waterproof?

A: Membrane switches can be designed with waterproof properties, preventing damage from water, humidity, or moisture.

Q: How are membrane switches constructed?

A: Membrane switches consist of a top membrane layer with a printed circuit at the lower surface, which is then bonded with an adhesive layer and a bottom liner. The printed circuit is contacted by a conductive contact on the back of the pressure-sensitive adhesive film.

Q: What is an example of a membrane switch?

A: Membrane switches are a class of user interface that allows humans to interact with electronic devices and machinery. The simplest way to explain what a membrane switch is may be to use an example. The panel on your microwave with numbers, a start/stop button, and more is almost always a membrane switch.

Q: Can membrane switches be customized?

A: Yes, membrane switches can be custom-designed according to the specific requirements of the application.

Q: What colors can membrane switches be made in?

A: Membrane switches can be designed in a wide range of colors, based on customer preferences and requirements.

Q: What is the difference between membrane and tactile switches?

A: While each provides the same essential functionality for a user to control a specific interaction with a device, tactile and non-tactile interactions offer noticeably different user experiences: Tactile membrane switches provide a physical, tactile response when pressed.

Q: How are membrane switches tested?

A: Membrane switches undergo extensive testing processes such as electrical conductivity, lifecycle testing, and environmental testing, to ensure reliability and safety.
